The Best High Weight Capacity Walking Pads and Treadmills

We went looking for 60 measurements across the 6machines on this page — the nine that decide whether an older adult can get on, reach the controls, read the screen and hear themselves think. 18 of those 60 are not published by anybody. Not one manufacturer here publishes the full set.

Step-over height is the worst of them. It is the single measurement that decides whether you can get onto a machine at all, and across everything we checked, not one manufacturer states it. That is not an oversight in a category explicitly marketed to seniors, and the count in each panel above is there so you can see who is doing it.

Where a figure exists, we cite it and date it. Where it doesn’t, the panel says Not published by the manufacturer rather than an estimate dressed up as a fact. You can measure step-over height yourself in about a minute — and if a machine is already in your house, that is the fastest way to settle it.

There are at least three things a walking-pad listing can mean by “capacity”, and almost none of them tell you which they mean.

A peak or maximum figure is the heaviest static load the frame is rated to carry. It is the biggest number available, so it is the one that goes in the title.

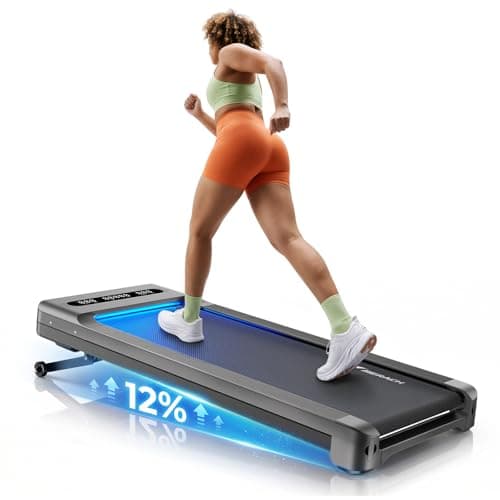

A sustained or continuous figureis the weight the machine is rated to carry while running, repeatedly, over its service life. It is always lower. MERACH publishes both — 400 pounds peak, 330 pounds sustained — and that single act of disclosure is the reason it tops this page. Nothing else we track in this category does it.

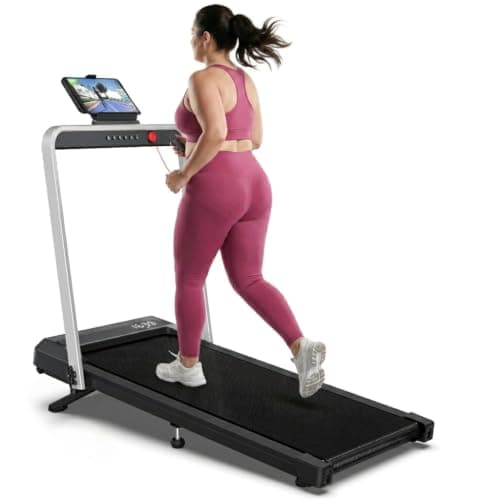

A number with no qualifier at all is what you get everywhere else. The WELLFIT states 350 pounds. The Redliro and the Yesoul both state 300 pounds. Those are probably maximum ratings, but they do not say so, and we are not going to label them as something the maker did not write.

How to use this when the figure is bare: leave real headroom. If a machine states 300 pounds with no qualifier and you are at 290, that is not a machine with a 10-pound margin; it is a machine whose only published figure you are sitting right on top of, with no idea whether it describes standing still or walking daily. The conservative read — and the one we would use for our own family — is to treat a bare number as a maximum and stay comfortably under it.

One more figure worth knowing about: the Sunny Pacer is the only machine on this page that publishes a minimum user weight as well as a maximum, at 99 pounds against 265. That is an unusual and genuinely useful disclosure in the opposite direction, and it is why a machine with the lowest ceiling here still earns a place on a page about capacity. Sunny is willing to tell you both ends of the envelope.

If a higher capacity is why you are shopping, three other published figures deserve the same attention, and they are all on the cards above.

Belt width and length. A heavier walker is usually also a wider walker, and a narrow belt forces a narrower gait than you naturally use. The MERACH publishes the largest surface here at 41.3 by 16.5 inches, and the WELLFIT publishes 36 by 16 inches. Both are wider than a typical budget pad. The difference between a 15.5-inch belt and a 16.5-inch belt sounds trivial on paper and is not trivial underfoot, particularly if your feet turn out slightly.

Frame weight.Counter-intuitively, you want this high. The MERACH publishes 67.7 pounds of machine and its listing ties that mass directly to less shake under a heavier walker — a light pad flexes and skitters. The trade is obvious: 67.7 pounds is also the hardest machine here to move daily, so a heavy pad wants a permanent home rather than a nightly trip to the closet. Our folding-treadmill shortlist goes into which of these machines publishes a folded size at all.

Motor rating, and which rating it is.“3.5 HP” on a walking pad is a peak figure. MERACH is the only machine here that publishes a continuous rating as well — 1.25 CHP — which is the number that describes what the motor does for half an hour rather than for half a second. A heavier walker asks more of the motor than a lighter one, so a published continuous rating is worth more than a bigger peak.

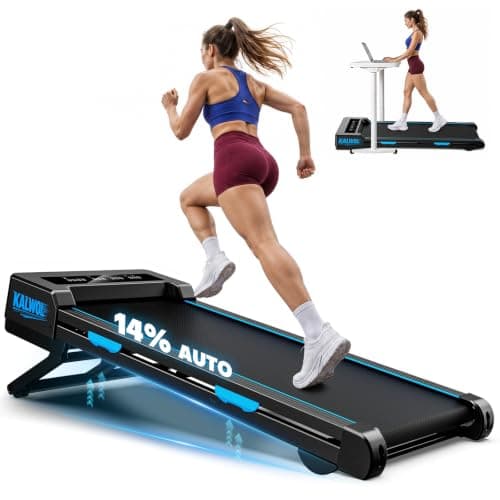

What none of the six publishes is a step-up height. Not one. That is the measurement this site cares about most, because it decides whether getting on feels like a step or a climb, and the closest any of them comes is an overall height: 4.35 inches for the WELLFIT, 5.35 for the KALWOL, 6.5 for the MERACH. The deck is necessarily lower than the overall height, but it is not the same measurement and we will not present it as one. If you want to settle it on a machine you already own, measuring step-over height takes about a minute.

Three of the six machines on this page have nothing to hold onto: the MERACH, the KALWOL, and in strict terms the Sunny Pacer once its handlebar is folded down. That is not a detail we are willing to bury on a site for people over 60.

More than one in four adults 65 and over falls each year according to the CDC, and falling once roughly doubles the chance of falling again. A moving belt with no rail is a surface you step onto, walk on and step off with nothing to steady you — and a heavier body falling is not a lighter body falling. If you are buying because your weight has made outdoor walking harder on the joints, and you are also less steady than you were, the capacity figure is not the specification that should decide this purchase.

That is why the ranking pairs the two. The WELLFIT publishes 350 pounds and a stability handlebar at the lowest price on the page. The Redliro publishes 300 pounds with full-length rails and the speed controls mounted on the rails themselves, so you never let go to change pace. The Yesoulpublishes 300 pounds with long handrails and an emergency stop button. Those three are the machines we would recommend to a reader who said “I need the capacity and I am not confident on my feet”, in that order, and the first of them costs less than the MERACH.

Buy the railless high-capacity pad if your balance is genuinely fine and the reason you are here is simply that a 220-pound rating does not cover you. That is a real and common situation, and the MERACH is the honest answer to it. Just make the choice deliberately rather than by sorting on the biggest number.

Setting it up well matters more at the top of the weight range too: our treadmill safety guide covers the clearance behind the machine and the safety-clip habit that makes a stumble survivable, and the walking-pad speed guide covers starting slower than feels sensible.

If your weight is above every figure on this page, the honest answer is that a walking pad is the wrong machine, not that you should buy the biggest number you can find. Two better routes exist.

A seated bike.This is the single best-covered part of this site for exactly this reason: a recumbent bike takes your weight through a seat rather than through your joints and a moving belt, and published capacities in that category run far higher — two of the bikes we track publish 450 pounds. Our high-capacity recumbent shortlist ranks them on the published figure and on the step-over height you have to clear to get on, and the equipment guide for overweight seniors lays out the whole decision without assuming you want a treadmill at all.

A seated pedal unit or elliptical.Smaller, cheaper, and it works from the chair you already own. Capacity disclosure in that category is poor — most of those listings publish no user weight figure at all, which our pedal exerciser shortlist says plainly — but you are sitting rather than standing, and the load on the frame is a fraction of what a walking deck sees.

Whatever you buy, the activity target does not change with the machine. The CDC asks adults 65 and over for 150 minutes a week of moderate activity, two days of muscle strengthening and some balance work, and it does not specify equipment. The National Institute on Aging is similarly clear that almost anyone at any age can do some type of physical activity, built up slowly. The machine that gets used is the one that counts.

What we left off.Several pads advertising 400-plus pounds publish no belt dimensions, no machine weight and no motor rating, and we are not putting a reader’s whole body weight on a listing like that. We also left off commercial-grade treadmills with genuine 400-pound continuous ratings: they are the right engineering answer and they cost several times the top of this page, which puts them outside what anybody arriving here is shopping for.
